  1. #1
    Techie-Gurus.com GURU
    Join Date
    Mar 2008
    Location
    Canada, Ontario
    Posts
    128
    ||Q6600 @ 3Ghz||8800GT OC @ 700||OCZ PC 6400 4-4-4-15-1T||
    ||ASUS P5N32-E SLI i680||74GB Raptor + 250GB Backup||OCZ GameXtreme 700w||
    ||Zalman 9700 Led||Sony 16x Optical DVD drive||Creative 7.1 Surround Sound PCI||
    ||Cooling - Apogee GTZ, Swiftech Res/120.2 Rad||Tygon 7/16//5/8 Clear||
    ||AF PWM 120mm Fansx2||Danger Den CPX-Pro Pump||Bitspower Compression fittings||

    http://www.noobgalore.us
    http://www.galoreradio.com
    http://www.galoregameservers.com

  2. #2
    Techie-Gurus.com GURU
    Join Date
    Mar 2008
    Location
    Canada, Ontario
    Posts
    128

    Default

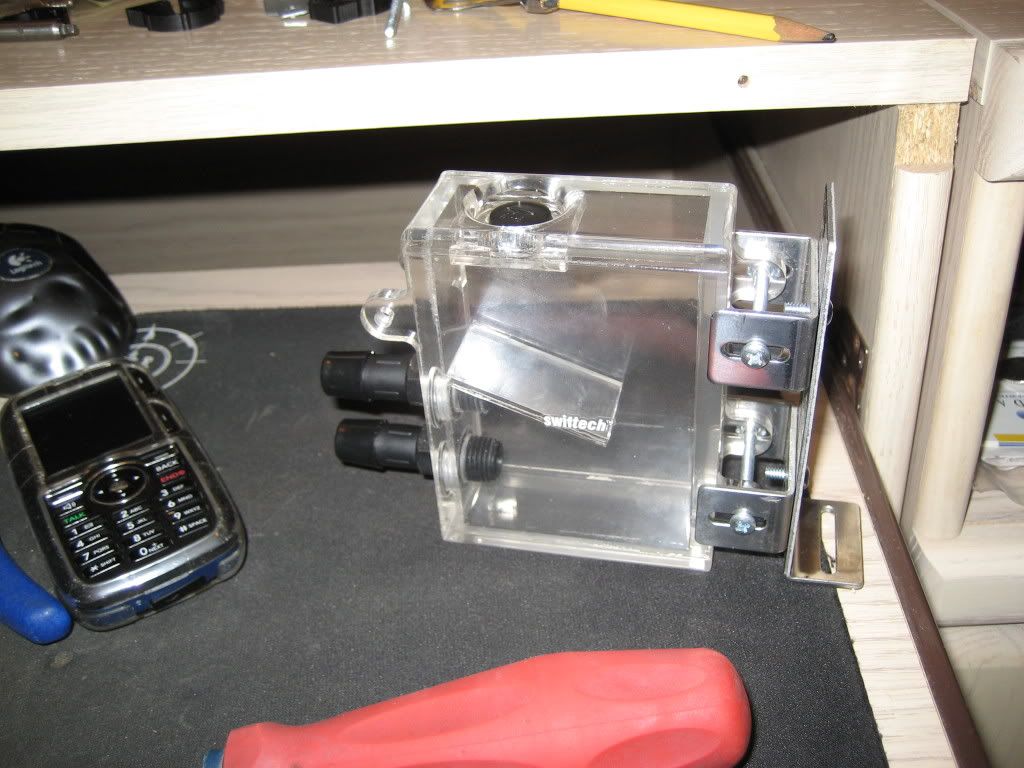

    Resivor Assembled

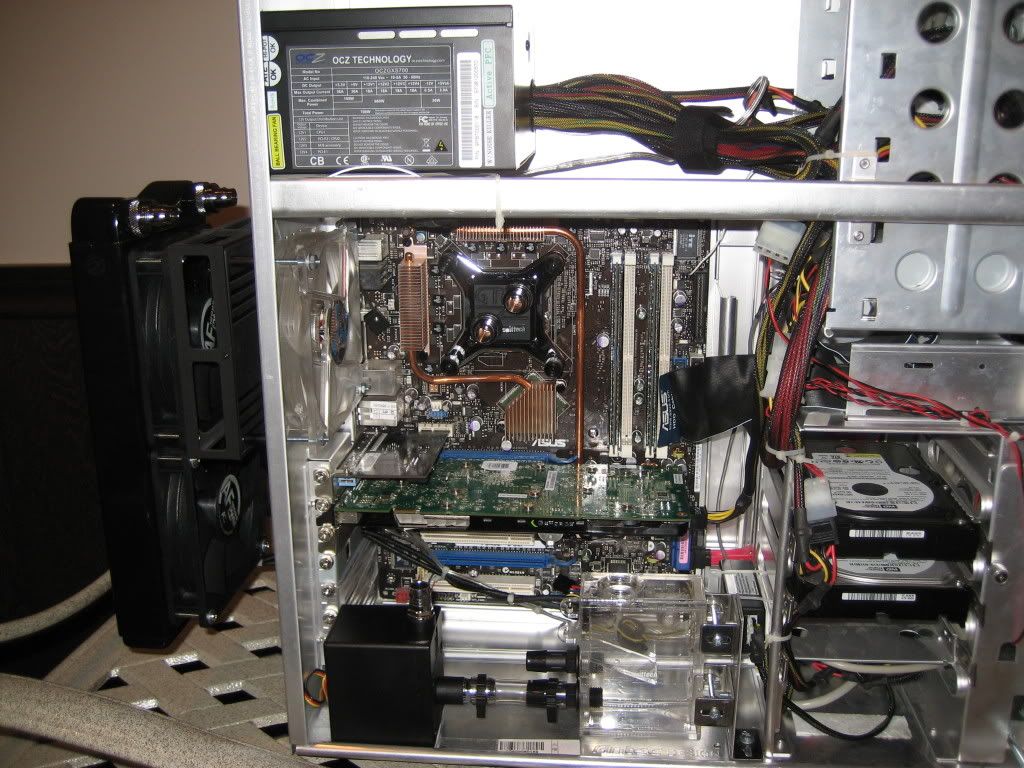

    Water Block mounted with Compression fittings

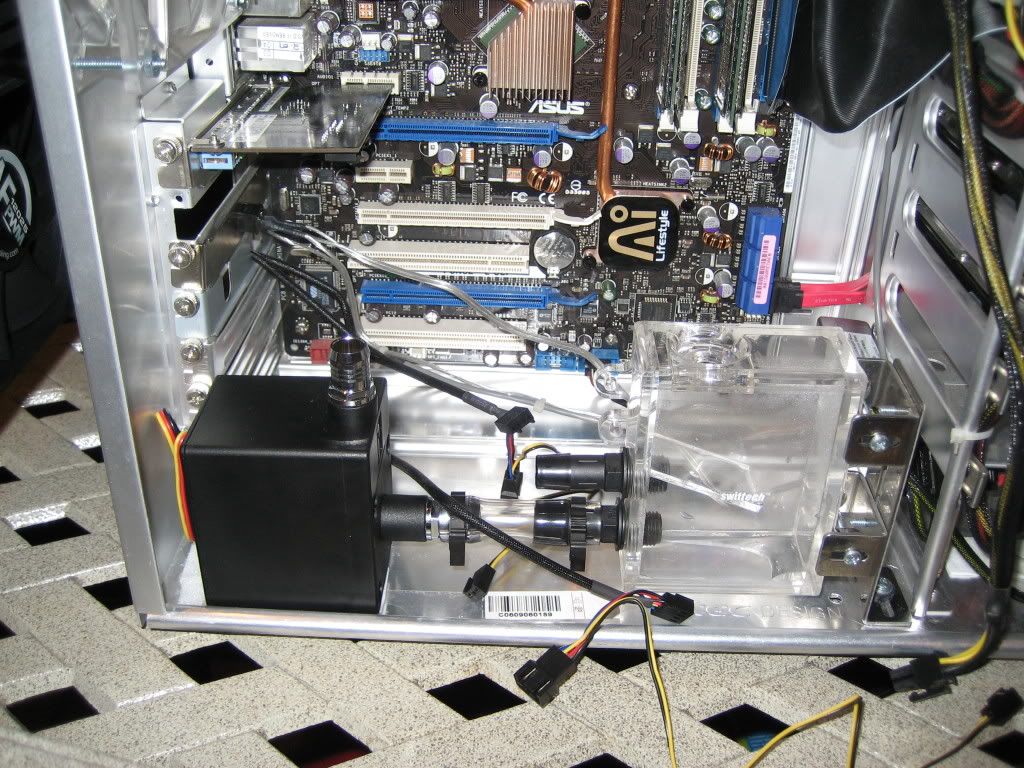

    Dry Fit Pump and Res



    Installed Cathcodes and cleaned up wiring (still adjusting)
    ||Q6600 @ 3Ghz||8800GT OC @ 700||OCZ PC 6400 4-4-4-15-1T||
    ||ASUS P5N32-E SLI i680||74GB Raptor + 250GB Backup||OCZ GameXtreme 700w||
    ||Zalman 9700 Led||Sony 16x Optical DVD drive||Creative 7.1 Surround Sound PCI||
    ||Cooling - Apogee GTZ, Swiftech Res/120.2 Rad||Tygon 7/16//5/8 Clear||
    ||AF PWM 120mm Fansx2||Danger Den CPX-Pro Pump||Bitspower Compression fittings||

    http://www.noobgalore.us
    http://www.galoreradio.com
    http://www.galoregameservers.com

  3. #3
    Techie-Gurus.com GURU
    Join Date
    Mar 2008
    Location
    Canada, Ontario
    Posts
    128

    Default

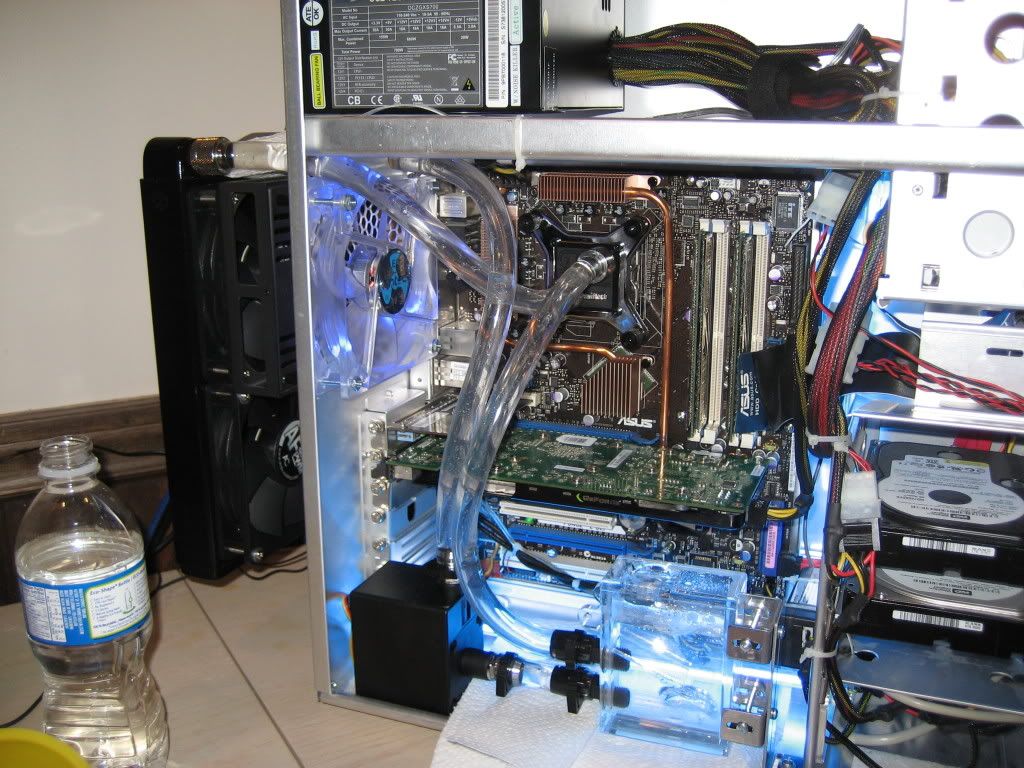

    Installed Rad/Res/Pump

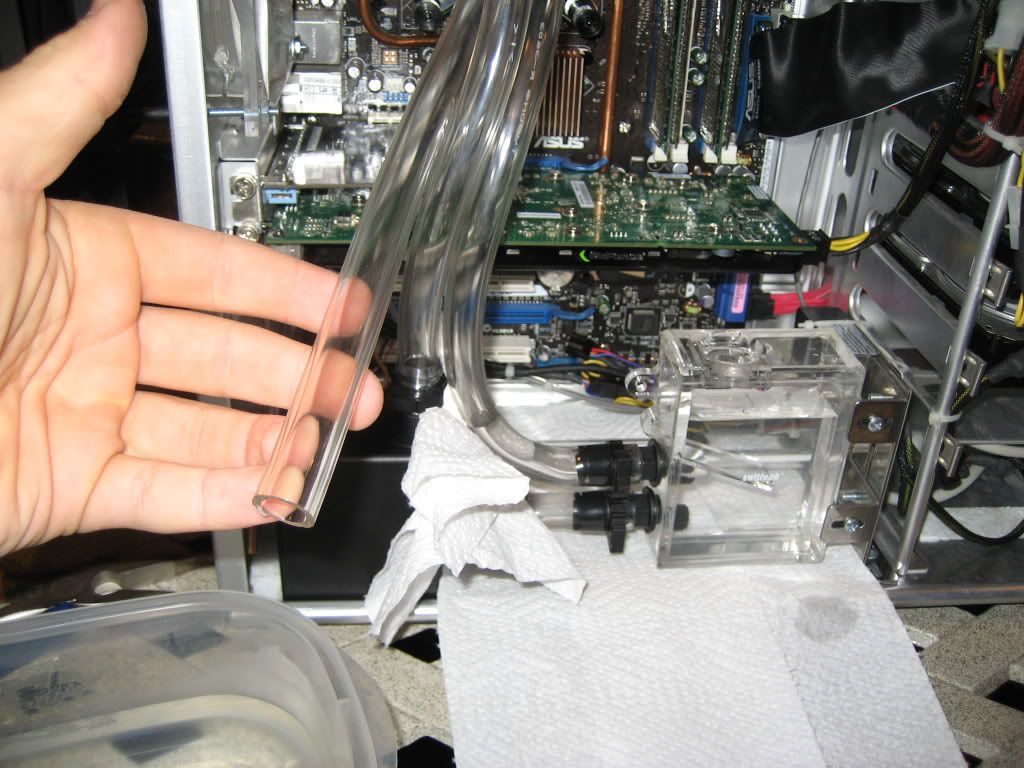

    Left one end off to fill res to let air drain out, then attached before turning on.


    Bleeding Lines
    ||Q6600 @ 3Ghz||8800GT OC @ 700||OCZ PC 6400 4-4-4-15-1T||
    ||ASUS P5N32-E SLI i680||74GB Raptor + 250GB Backup||OCZ GameXtreme 700w||
    ||Zalman 9700 Led||Sony 16x Optical DVD drive||Creative 7.1 Surround Sound PCI||
    ||Cooling - Apogee GTZ, Swiftech Res/120.2 Rad||Tygon 7/16//5/8 Clear||
    ||AF PWM 120mm Fansx2||Danger Den CPX-Pro Pump||Bitspower Compression fittings||

    http://www.noobgalore.us
    http://www.galoreradio.com
    http://www.galoregameservers.com

  4. #4
    Techie-Gurus.com GURU
    Join Date
    Mar 2008
    Location
    Canada, Ontario
    Posts
    128

    Default

    Finished Product

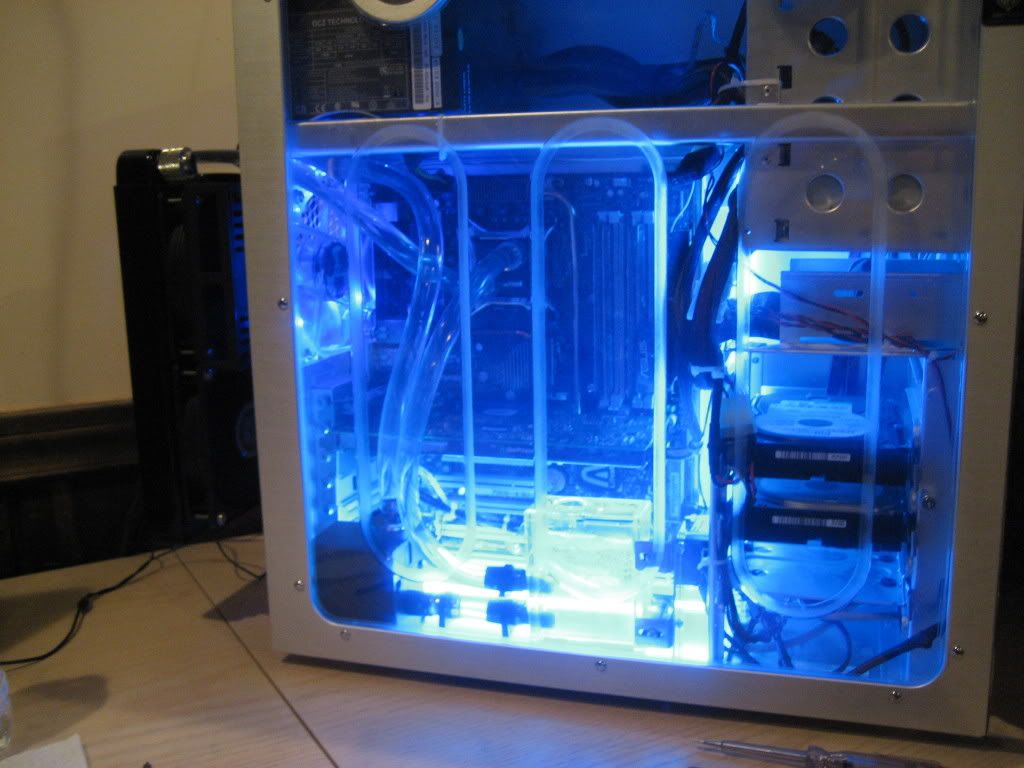

    In the dark it looks amazing.

    I had a leak on one of the upgraded compression fittings on the rad. The o-rings given with bitspower really are to small in thinkness for a good seal. I took fatter ones of the supplied barbs and they worked perfect. I will change the other later on.

    Other then that, there was no leaks or problems. The Tygon 7/16 ID//// 5/8 OD tubing is great for bending, performance and looks. Came in one solid piece no problem. Also very easy to cut.

    I will get some night time shots up later. And I cleaned up my wiring better. Pain in the ass to hook up the fans I bought with the 4 pin connectors on my motherboard but I made it work. Cables could have been longer considering I was running it from outside the case. But for the average fan it is plenty.

    I must say the swift tech resivor is amazing. It takes out bubbles very well for you. Lines were good in minutes and virtually no bubbles after 20minutes. I recommend it to any else who is planning on building new.

    I will also get some screens up soon with my overclocks. CPU idles at 18 degrees running a Q6600 @ 2.4
    ||Q6600 @ 3Ghz||8800GT OC @ 700||OCZ PC 6400 4-4-4-15-1T||
    ||ASUS P5N32-E SLI i680||74GB Raptor + 250GB Backup||OCZ GameXtreme 700w||
    ||Zalman 9700 Led||Sony 16x Optical DVD drive||Creative 7.1 Surround Sound PCI||
    ||Cooling - Apogee GTZ, Swiftech Res/120.2 Rad||Tygon 7/16//5/8 Clear||
    ||AF PWM 120mm Fansx2||Danger Den CPX-Pro Pump||Bitspower Compression fittings||

    http://www.noobgalore.us
    http://www.galoreradio.com
    http://www.galoregameservers.com

  5. #5
    Techie-Gurus.com Newbie
    Join Date
    Dec 2008
    Posts
    15

    Default

    That is a godlike cooling system. Looks damn complicated. Wish I could have a set up like that but I'm to scared to get water near my computer. Water + Electronics don't seem to work for me, ask my old labtop which is toast from water!

  6. #6
    Techie-Gurus.com GURU
    Join Date
    Mar 2008
    Location
    Canada, Ontario
    Posts
    128

    Default

    running 3.0 Ghz steady @ 1.36 vcore on a 1.325 VID chip. I was unlucky with my processor but its running great so far and I hit the low 20's idle mark now that the AS5 has settled in and it doesnt hit over 48 on load.
    ||Q6600 @ 3Ghz||8800GT OC @ 700||OCZ PC 6400 4-4-4-15-1T||
    ||ASUS P5N32-E SLI i680||74GB Raptor + 250GB Backup||OCZ GameXtreme 700w||
    ||Zalman 9700 Led||Sony 16x Optical DVD drive||Creative 7.1 Surround Sound PCI||
    ||Cooling - Apogee GTZ, Swiftech Res/120.2 Rad||Tygon 7/16//5/8 Clear||
    ||AF PWM 120mm Fansx2||Danger Den CPX-Pro Pump||Bitspower Compression fittings||

    http://www.noobgalore.us
    http://www.galoreradio.com
    http://www.galoregameservers.com

  7. #7
    Techie-Gurus.com Regular
    Join Date
    Dec 2008
    Location
    Toronto
    Posts
    69

    Default

    I wanna do liquid cooling with my next rig, but is it worth it if you're not over clocking ?

  8. #8
    RedStar
    Guest

    Default

    Quote Originally Posted by 7seaS View Post
    I wanna do liquid cooling with my next rig, but is it worth it if you're not over clocking ?
    Its worth it, def works better than air, and its always a good cooling solution.

  9. #9
    Techie-Gurus.com Newbie
    Join Date
    Feb 2009
    Posts
    4

    Default

    Quote Originally Posted by RedStar View Post
    Its worth it, def works better than air, and its always a good cooling solution.
    Not according to HardOCP. The gains from water over a GOOD air cooler are around 1-2 degrees c at idle, 2-3 at full load. I've got my 920 i7 @ 3.8ghz STABLE on air. I would say that the biggest gain would be noise, but my Noctua isn't all that loud.

    Anything short of Phase Change systems and there isn't much gain. That is comparing apples to apples, of course. By that I mean quality Air vs. quality water systems.
